Arc faults are one of the leading causes of electrical fires. They are dangerous, often hidden, and traditional circuit breakers are often too slow to detect them. Our IoT solution transforms electrical fire prevention by monitoring the precise 'signature' of electricity in real-time.
The Problem
An Arc Fault is an unintended electrical discharge—a spark or flash—that occurs between two wires or conductors. These can be caused by:
-
Damaged Insulation: From aging, rodents, or physical strain.
-
Loose Connections: In outlets, switches, or junction boxes.
-
Overheating: Causing wire degradation.
Traditional circuit breakers often only trip on severe overloads or short circuits. They usually fail to detect the subtle, brief, and intermittent current fluctuations that characterize a dangerous arc fault before it starts a fire.
Solution

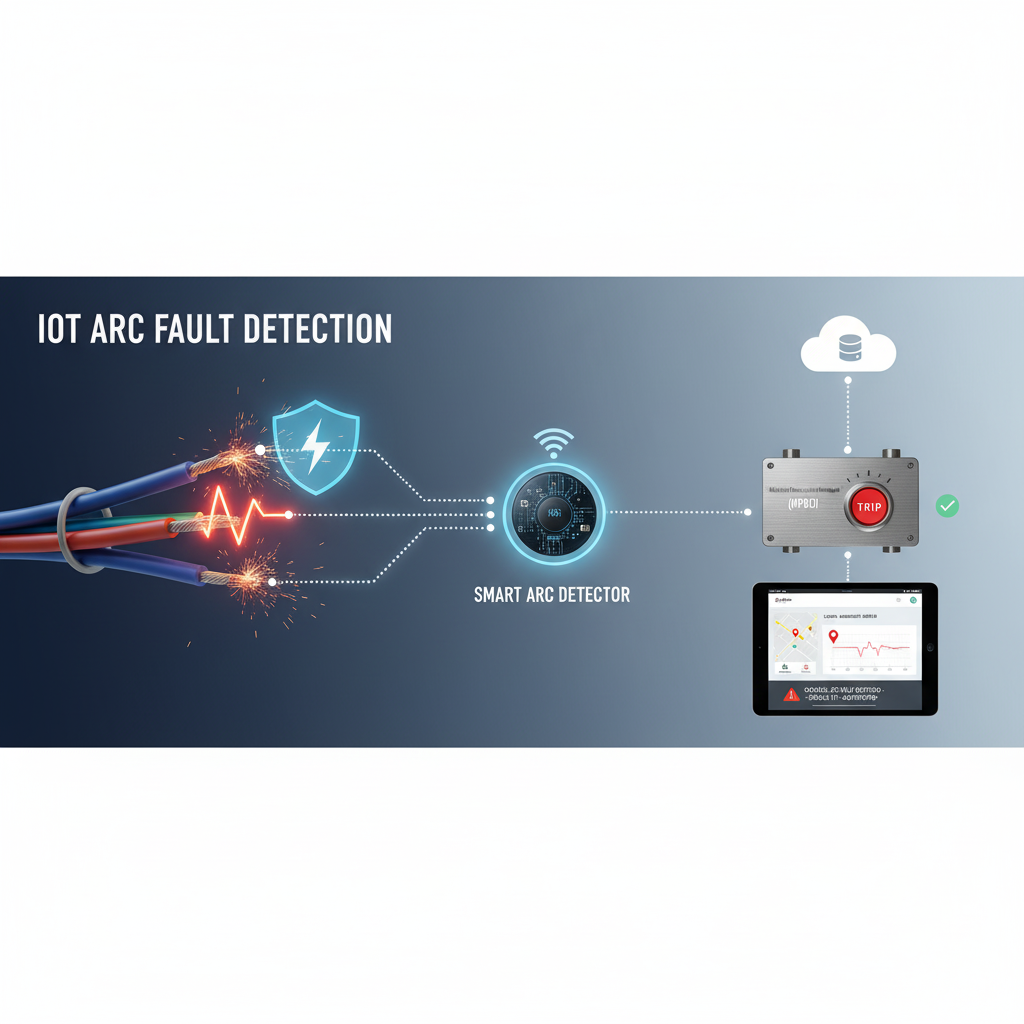

We deploy smart, non-intrusive sensors integrated with Micro-Processor-Based Circuit Interrupters (MPBCIs) on AC power lines.
-
High-Frequency Signal Analysis: The IoT device constantly analyzes the electrical current for specific high-frequency noise patterns and waveforms unique to arcing.
-
Pattern Recognition: Advanced algorithms (often using Machine Learning) distinguish harmless electrical 'noise' (like a motor starting up) from a genuine, dangerous arc signature.
-
Instantaneous Intervention: When a confirmed arc fault signature is detected, the IoT system instantly signals the interrupter to trip the circuit in milliseconds, preventing the sustained heat that causes ignition.
-
Cloud Reporting: Alerts are logged and sent immediately to facility managers, providing the exact location of the fault for rapid repair and maintenance.
Benefits
-
Early Fire Prevention: Stops the electrical fault before enough heat is generated to ignite surrounding materials.
-
Increased Uptime: By identifying minor faults early, you prevent major failures and subsequent prolonged, costly shutdowns.
-
Pinpoint Diagnostics: Eliminates manual troubleshooting; you know exactly which branch circuit or appliance is failing.
-
Compliance Assurance: Helps meet stringent electrical safety codes (e.g., NFPA 70 / NEC) in high-risk environments.
-
Predictive Maintenance: Tracking minor current anomalies allows staff to repair faulty wiring before a dangerous arc fault even occurs.
